Meta injection molding door parts MIM powder metallugry

Meta Injection Molding Door Parts MIM Process

The MIM process begins with the preparation of a feedstock by mixing fine metal powders with a binder material. Simultaneously, a mold is created to shape the final product. The feedstock is then injected into the mold and allowed to solidify. Following solidification, the binder removal process begins, which typically involves multiple cycles to ensure thorough removal. This step is crucial as it enhances the strength of the final part. Once debinding is complete, the part becomes semi-porous, facilitating the escape of secondary binders during the sintering process. Sintering is the final step, ensuring the desired wall thickness, geometry, material composition, and physical properties of the products. The MIM process enables efficient production of high volumes of products.

MIM technology has revolutionized the metalworking industry by combining multiple operations into one process, resulting in cost and time savings. This innovative technique involves mixing finely-powdered metal with a binder material to create a feedstock, which is then shaped and solidified using injection molding. One of the notable advantages of MIM is its environmental friendliness, as it minimizes wastage compared to traditional manufacturing methods. This green technology has proven to be highly beneficial for manufacturers, offering increased efficiency and reduced environmental impact.

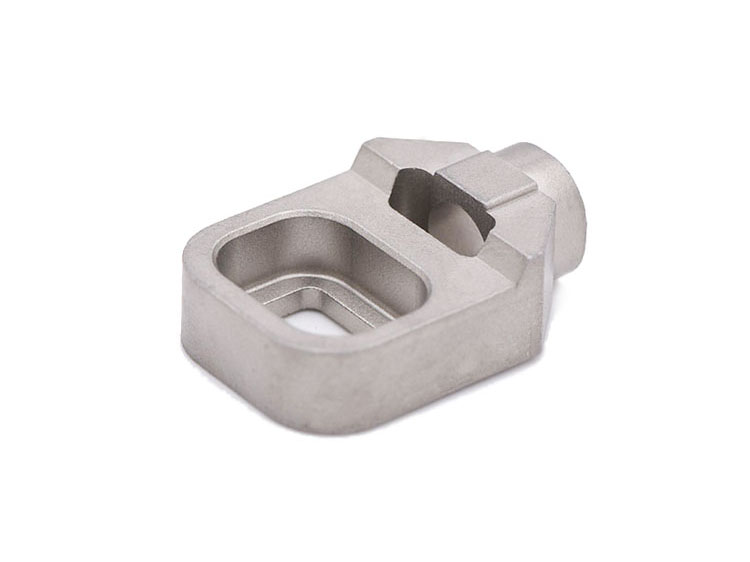

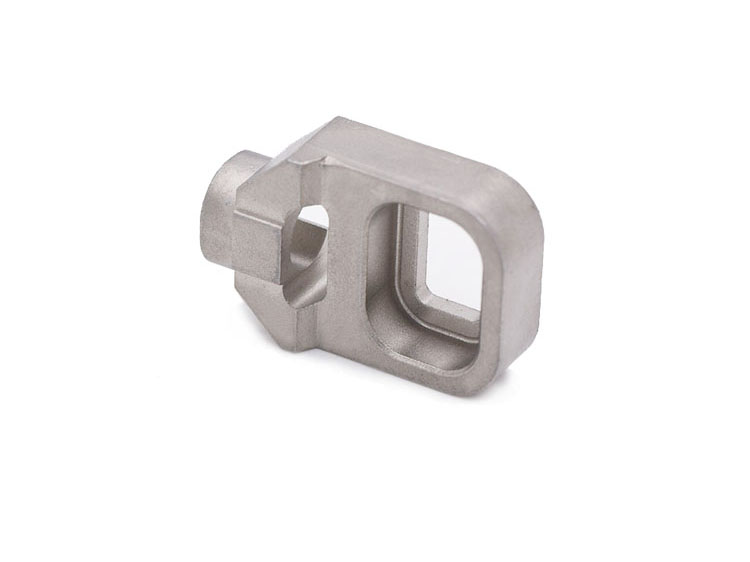

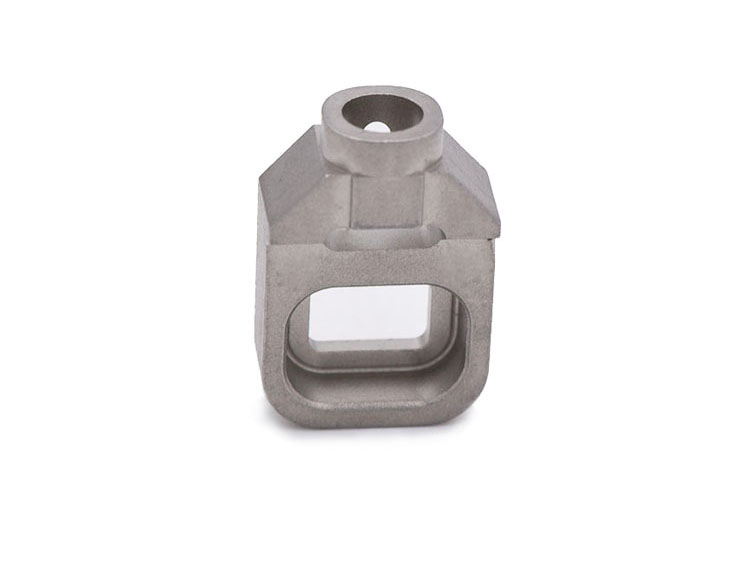

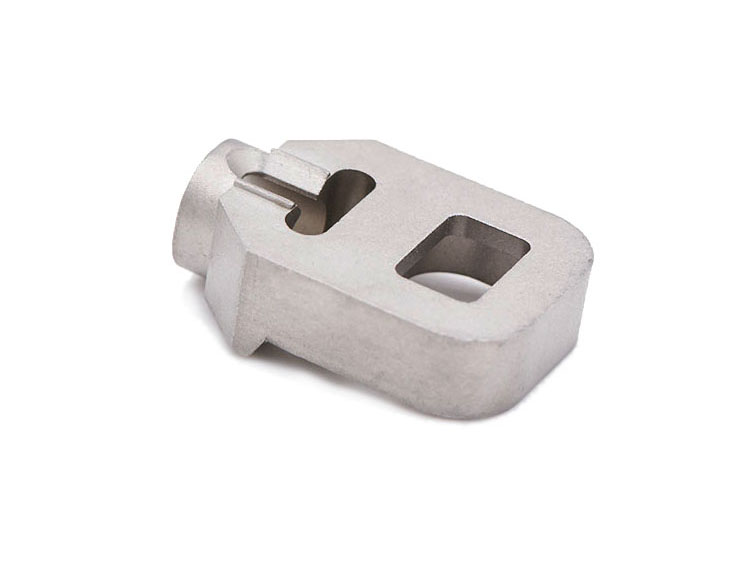

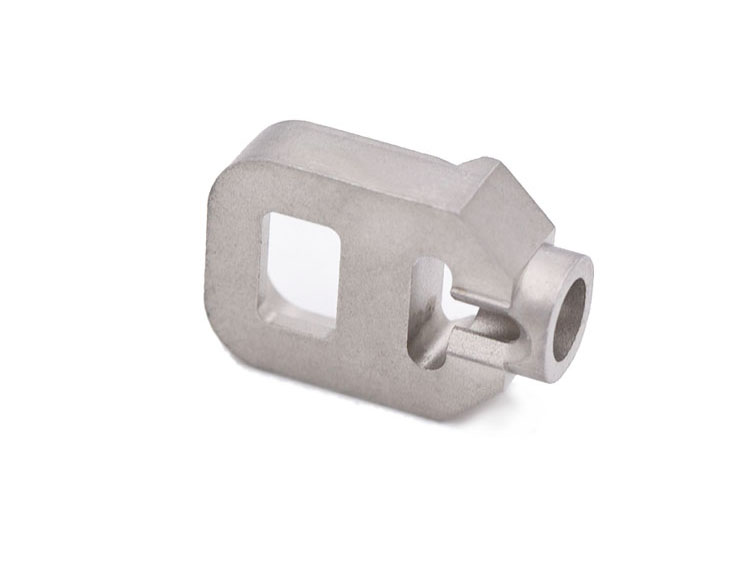

OEM Satinless Steel SUS304 Smart Lock Cylinder Lock Housing

What's the lock parts MIM technology and its advantages and features.

• it’s suit to do mass production with complicated shapes;
  1, MIM is an advanced metal forming technology that use injection molding machine to manufacturing precision and complex metal parts, which combines the advantage of PM and plastic injection molding.

• it can use all kind of metal material(such as stainless steel, iron, ceramic and titanium, etc)

• its relative density can achieve more than 98%

• its finished products is close to final products, reducing the post-treatment cost, and then save production cost

• compared with tranditional CNC and precision casting process, the structure are more even and preformance is much better

• compared with PM(Powder Metallurgy), MIM can produce more complex shape and better preformance metal products.

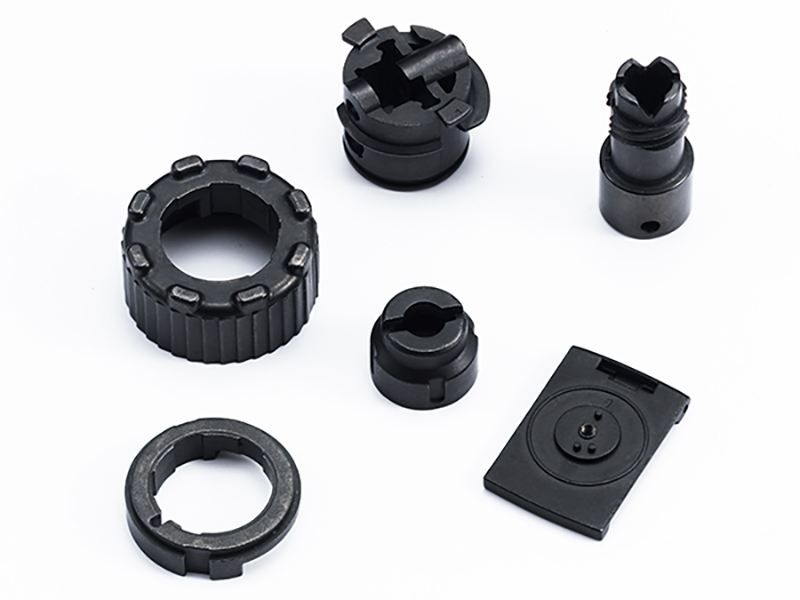

Complex Lock Parts Material

Compare with other process

Service:

1, 100% inspection before shipment.

2, Satisfied packing, carton, wooden case, pallet,or according to your requirement.

3, Samples are within 35-40 days after the receipt of the deposit. production will be finished about 25-30days after samples confirma

If you are interested in lock button, please send me 2D or 3D drawings, and then we will evaluate them and offer you a nice price
