Solution in IT Electronic field
Electronics are continually evolving and reguire cutting edge engineering and design assistance to meet demands for greater functionality in smaller packages. Harber combines its core competencies in precision engineering and miniaturization to deliver the highest quality components for global Company.

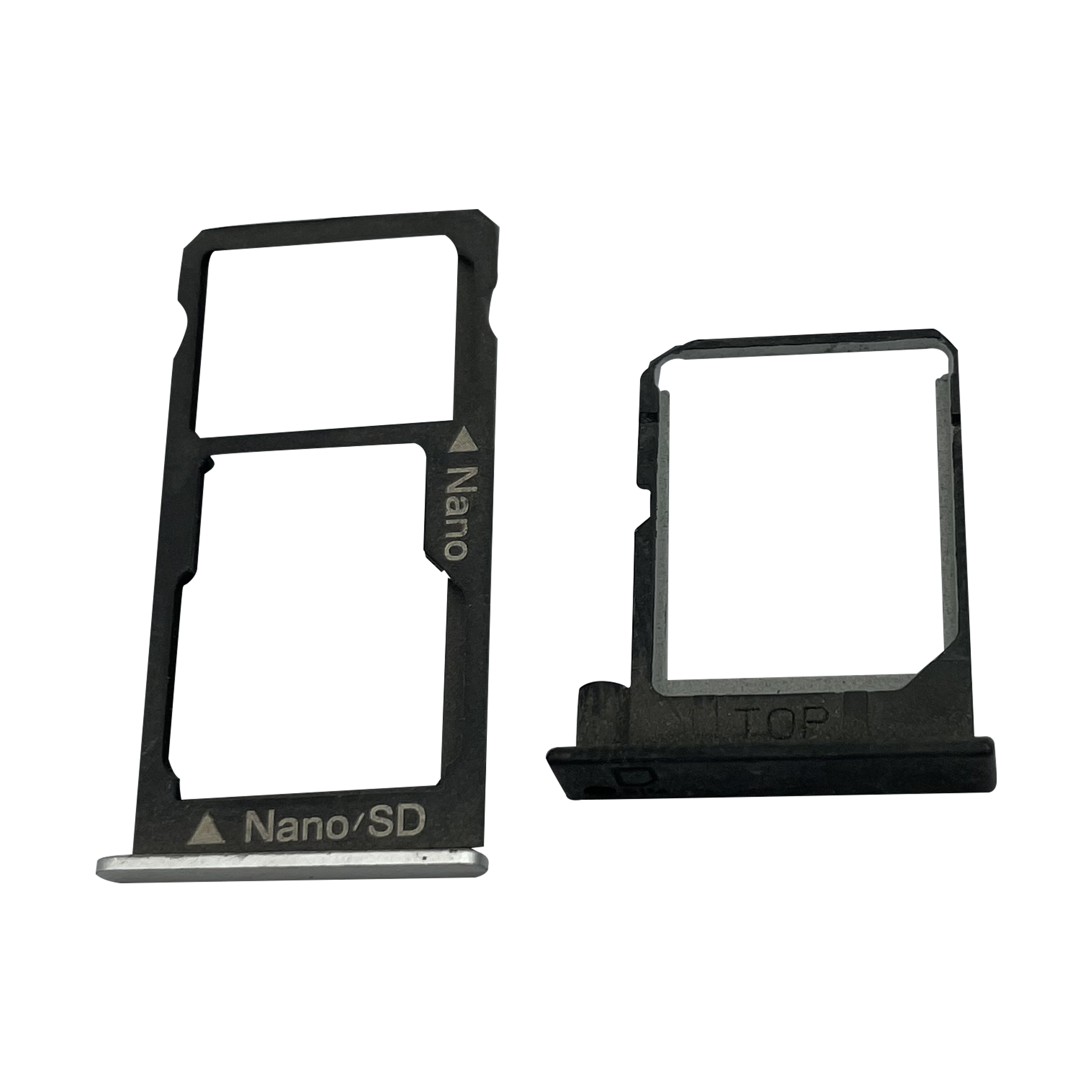

metal injection molding electronic component mim sim card part
Brand name | OEM & ODM |
Product type | Adjustable hinge mim part |
Product Model | MIM702 |
Material | Stainless steel 316L 304 17-4PH peptide Fe2Ni Fe4Ni Fe20Ni |
Post-Sintering | Polishing,Wire-drawing,Sandblasting,Plating,Coated,etc. |
Size | Custom |
Tolerance | 10mm±(0.02-0.04)mm |
Weight | 10g |
Forming Method | Powder Injection Molding |
Sintering method | Solid phase sintering |
Sintering environment | Vacuum |
Mold material | Stainless steel |
Application | Security industry |
Shape | Custom |
OEM | Accept |
QC system | 100% inspection before shipment |
Payment terms | T/T at sight, Paypal, Western Union,etc. |
Lead time | 7-15 working days |
Supply capability | 500000 Piece Per Month |
Packaging | PP bag / Anti-static film / anti-static plastic disc |
What's the MIM technology and its advantages and features.
it’s suit to do mass production with complicated shapes;
1, MIM is an advanced metal forming technology that use injection molding machine to manufacturing precision and complex metal parts, which combines the advantage of PM and plastic injection molding.
it can use all kind of metal material(such as stainless steel, iron, ceramic and titanium, etc)
its relative density can achieve more than 98%
its finished products is close to final products, reducing the post-treatment cost, and then save production cost
compared with tranditional CNC and precision casting process, the structure are more even and preformance is much better
compared with PM(Powder Metallurgy), MIM can produce more complex shape and better preformance metal products.
Production cost comparision between MIM and other processes
Cost Effective Design Flexibility/ Material Variety and Integrity
Powder metallurgy can ensure the accuracy and uniformity of the material composition ratio. Suitable for producing products of the same shape and large quantities, low production cost.
Compare with other process
| Parameter | MIM | CONVENTIONAL PM | MACHINING | INVESTMENT CASTING |
| Density | 98% | 88% | 100% | 98% |
| Tensile Strength | High | Low | High | High |
| Elongation | High | Low | High | High |
| Hardness | High | Low | High | High |
| Min. Wall Thickness | 0.5 mm | 1 mm | 0.5 mm | 2 mm |
| Complexity | High | Low | High | Medium |
| Surface Finish | High | Medium | High | Medium |
| Production Volumes | High | High | Low | Medium |
| Range of Materials | High | High | High | Medium-High |
| Cost | Medium | Low | High | Medium |
Service:
1, 100% inspection before shipment.
2, Satisfied packing, carton, wooden case, pallet,or according to your requirement.
3, Samples are within 35-40 days after the receipt of the deposit. production will be finished about 25-30days after samples confirma
Production Capacity comparision of MIM and other process
Most difficult metals and compounds, pseudo alloys, porous materials can only be manufactured by powder metallurgy
MIM material
| Material | Composition |
| Low alloy steel | Fe-2Ni, Fe-8Ni |
| Stainless steel | 316L, 17-4-PH |
| Tool steel | 42CrMo4, M2, Skd-11, C45 |
| Carbide | WC-Co(6%) |
| Ceramics | Al203, ZrO2, SiO2 |
| Tungsten alloy | W-Ni-Fe, W-Ni-Cu, W-Cu |
process | metal injection molding, powder metallurgy |
applied software | pro-e, CAD, PDF |
material | iron alloy , stainless steel, copper. ceramic, tungsten alloy |
surface finish | black, plating, PVD, polishing, sandblasting |
tolerance precision | ±0.02~0.05mm |
quality system | 100% inspection before shipment |
dimensions | as per customer's requests |
samples qty | 5-10 pcs(for free) |
certification | ISO 9001, TS 16949, IECQQC080000 |
packgae | plastic bag and carton or as customer's requests |
lead time | base on the qty of order(usually 40-45 days) |
If you are interested in lock button, please send me 2D or 3D drawings, and then we will evaluate them and offer you a nice price
High-Quality Metal Components for Special Applications
From Standard to the Individual Solution
The Harber Group is an important partner for individual solutions for numerous companies in the medical, electric tool, mechanical and consumer electronics sectors. Driven by stringent demands for quality, durability and safety, many of our standard metal parts from our various technology areas are able to master these challenges. No matter what metal product you are handling.
