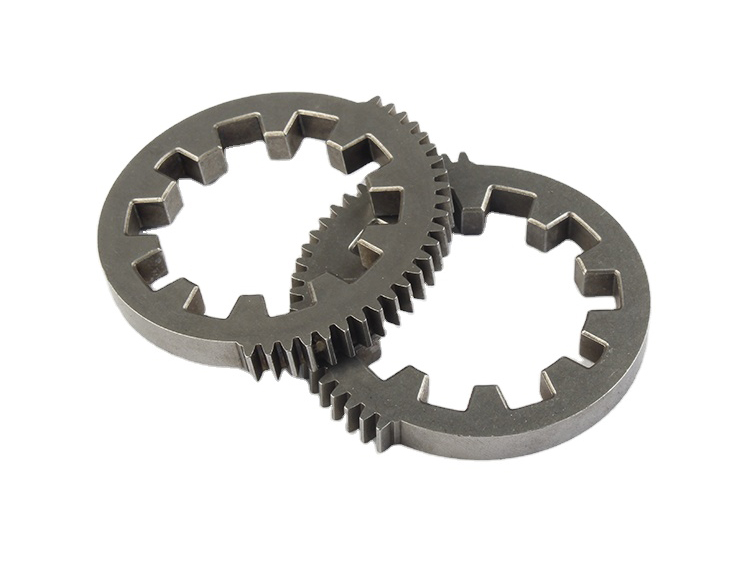

    Powder Metallurgy Process Precision Auto Parts VVT System Sprocket Wheel

    Describe:

  • Place of Origin: CHINA
  • Brand Name: Harber
  • Sintering methods: Solid phase sintering
  • Sintering pressure: Vacuum
  • Pressing method: Bi-directional moulding
  • Material: Stainless steel, Alloy
  • Certification: ISO 9001/ TS16949/IECAQC080000
  • Model Number: customized
  • Minimum Order Quantity: 1000PCS
  • Packaging Details: carton package, Blister tray or according to your requests
  • Delivery Time: 5-8 days
  • Upload a Part


    Powdered Metal Precision Car Parts Automobile Stator Parts


    Brand name

    OEM & ODM

    Product type

    Adjustable hinge mim part

    Product Model

    MIM702

    Material

    Stainless steel 316L 304 17-4PH peptide  Fe2Ni Fe4Ni Fe20Ni

    Post-Sintering

    Polishing,Wire-drawing,Sandblasting,Plating,Coated,etc.

    Size

    Custom

    Tolerance

    10mm±(0.02-0.04)mm

    Weight

    10g

    Forming Method

    Powder Injection Molding

    Sintering method

    Solid phase sintering

    Sintering environment

    Vacuum

    Mold material

    Stainless steel

    Application

    Security industry

    Shape

    Custom

    OEM

    Accept

    QC system

    100% inspection before shipment

    Payment terms

    T/T at sight, Paypal, Western Union,etc.

    Lead time

    7-15 working days

    Supply capability

    500000 Piece Per Month

    Packaging

    PP bag / Anti-static film / anti-static plastic disc



    Powder injection moulding is widely used in industries.jpg


    What's the MIM technology and its advantages and features.

    it’s suit to do mass production with complicated shapes;
    1, MIM is an advanced metal forming technology that use injection molding machine to manufacturing precision and complex metal parts, which combines the advantage of PM and plastic injection molding.

    it can use all kind of metal material(such as stainless steel, iron, ceramic and titanium, etc)

    its relative density can achieve more than 98%

    its finished products is close to final products, reducing the post-treatment cost, and then save production cost

    compared with tranditional CNC and precision casting process, the structure are more even and preformance is much better

    compared with PM(Powder Metallurgy), MIM can produce more complex shape and better preformance metal products.





    MIM material

    MaterialComposition
    Low alloy steelFe-2Ni, Fe-8Ni
    Stainless steel316L, 17-4-PH
    Tool steel42CrMo4, M2, Skd-11, C45
    CarbideWC-Co(6%)
    CeramicsAl203, ZrO2, SiO2
    Tungsten alloyW-Ni-Fe, W-Ni-Cu, W-Cu





    Compare with other process

    ParameterMIMCONVENTIONAL PMMACHININGINVESTMENT CASTING
    Density98%88%100%98%
    Tensile StrengthHighLowHighHigh
    ElongationHighLowHighHigh
    HardnessHighLowHighHigh
    Min. Wall Thickness0.5 mm1 mm0.5 mm2 mm
    ComplexityHighLowHighMedium
    Surface FinishHighMediumHighMedium
    Production VolumesHighHighLowMedium
    Range of MaterialsHighHighHighMedium-High
    CostMediumLowHighMedium

    Service:

    1, 100% inspection before shipment.

    2, Satisfied packing, carton, wooden case, pallet,or according to your requirement.

    3, Samples are within 35-40 days after the receipt of the deposit. production will be finished about 25-30days after samples confirma





    Technology

    Powder Metallurgy

    Metal injection moding

    General Material

    Fc0208/Fn0208

    17-4Ph/4605

    Density

    6.7-6.8

    7.7-7.8

    Hardness

    Fc0208(20-30HRC)

    Fn0208(35-40HRC)

    17-4Ph(35-40HRC)

    4605(45-50HRC)

    Application

    Medical apparatus and instruments

    Hardware field

    Automobile industry

    Home appliances


    If you are interested in lock button, please send me 2D or 3D drawings, and then we will evaluate them and offer you a nice price
