    ODM MIM Factory Custom Metal Injection Molding Process Powder Metal Parts

    Describe:

  • Place of Origin CHINA
  • Brand Name Harber
  • Certification ISO 9001/ TS16949/IECAQC080000
  • Model Number customized
  • Minimum Order Quantity 1000PCS
  • Packaging Details carton package, Blister tray or according to your requests
  • Delivery Time 5-8 days
  • Payment Terms T/T, Western Union, D/P
  • Supply Ability 10,000,000PCS
  • Upload a Part
    Material316 Stainless Steel,iron, Ceramic EtcColorSliver
    ProcessMIM Process(Metal Injection Molding),PM(Powder Metallurgy)OEM OR NOTOEM
    Surface TreatmentMagnetic PolishingPrecisionHigh-precision
    Quotoed Conidtion2D And 3D Drawings Or SamplesTolerance±0.05mm
    ApplicationElectronic LockHeat TreatmentNO
    High Light

    door lock spindle

    smart lock cylinder

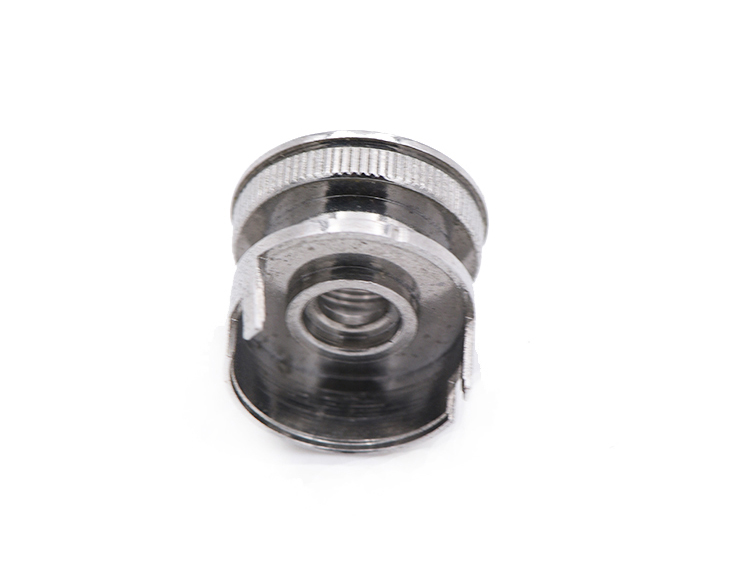

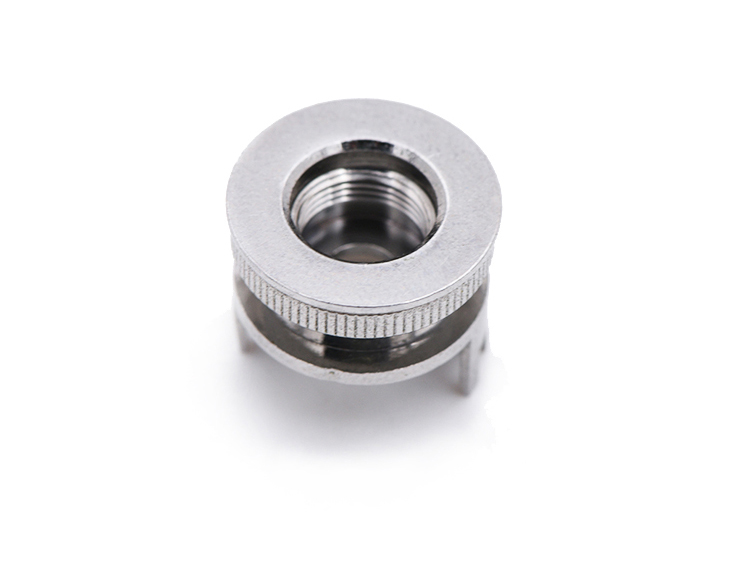

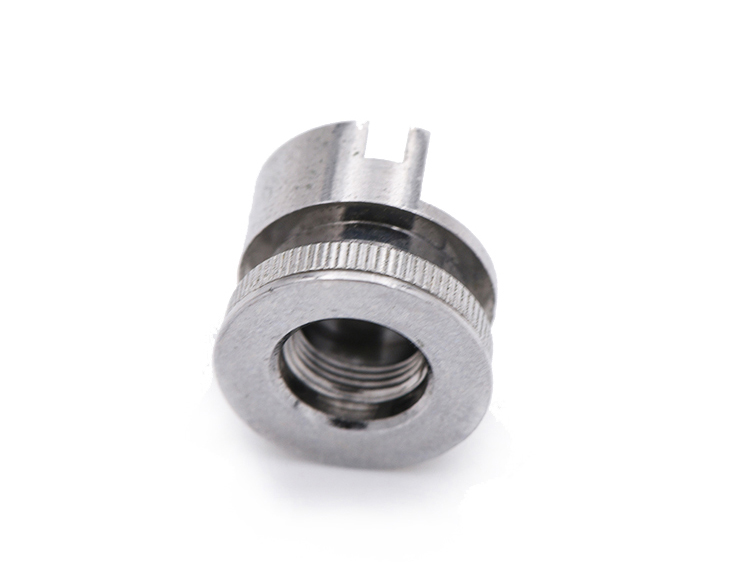

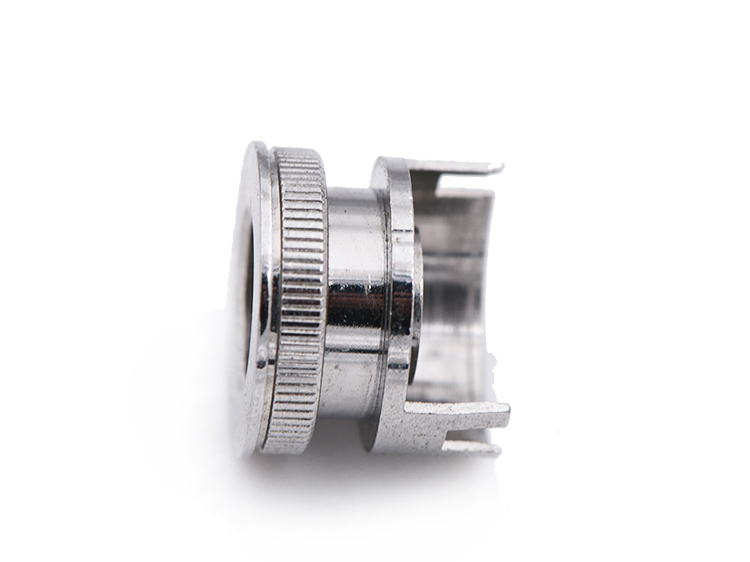

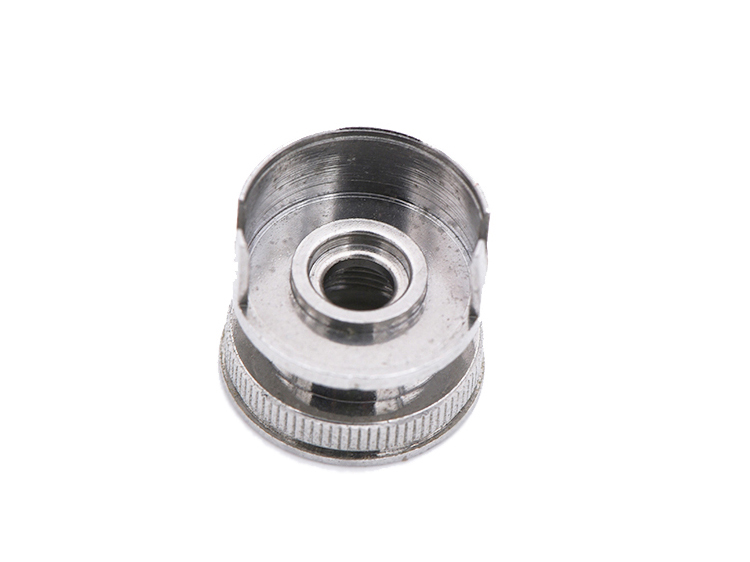

    OEM Satinless Steel SUS304 Smart Lock Cylinder Lock Housing



    Brand nameOEM & ODM
    Product typeLock housing and lock cylinder housing
    Product ModelNO
    Materialstainless steel, SS304/SS316L and etc
    Post-SinteringMagnetic polishing or polishing
    SizeCustomized
    Tolerance±0.05mm
    Weight≤20g
    Forming MethodPowder Injection Molding
    Sintering methodvacuum sintering
    Sintering environmentVacuum


    ApplicationLock
    ShapeCustom
    OEMAccept
    QC system100% inspection before shipment
    Payment termsT/T at sight, Paypal, Western Union,etc.
    Lead time25-30 working days(included mold manufacture time)
    Supply capability8000 Piece Per Day
    PackagingPP bag / Anti-static film /according to your request



    What's the MIM technology and its advantages and features.

    it’s suit to do mass production with complicated shapes;
    1, MIM is an advanced metal forming technology that use injection molding machine to manufacturing precision and complex metal parts, which combines the advantage of PM and plastic injection molding.

    it can use all kind of metal material(such as stainless steel, iron, ceramic and titanium, etc)

    its relative density can achieve more than 98%

    its finished products is close to final products, reducing the post-treatment cost, and then save production cost

    compared with tranditional CNC and precision casting process, the structure are more even and preformance is much better

    compared with PM(Powder Metallurgy), MIM can produce more complex shape and better preformance metal products.





    MIM material

    MaterialComposition
    Low alloy steelFe-2Ni, Fe-8Ni
    Stainless steel316L, 17-4-PH
    Tool steel42CrMo4, M2, Skd-11, C45
    CarbideWC-Co(6%)
    CeramicsAl203, ZrO2, SiO2
    Tungsten alloyW-Ni-Fe, W-Ni-Cu, W-Cu





    Compare with other process

    ParameterMIMCONVENTIONAL PMMACHININGINVESTMENT CASTING
    Density98%88%100%98%
    Tensile StrengthHighLowHighHigh
    ElongationHighLowHighHigh
    HardnessHighLowHighHigh
    Min. Wall Thickness0.5 mm1 mm0.5 mm2 mm
    ComplexityHighLowHighMedium
    Surface FinishHighMediumHighMedium
    Production VolumesHighHighLowMedium
    Range of MaterialsHighHighHighMedium-High
    CostMediumLowHighMedium

    Service:

    1, 100% inspection before shipment.

    2, Satisfied packing, carton, wooden case, pallet,or according to your requirement.

    3, Samples are within 35-40 days after the receipt of the deposit. production will be finished about 25-30days after samples confirma





    process

    metal injection molding, powder metallurgy

    applied software

    pro-e, CAD, PDF

    material

    iron alloy , stainless steel, copper. ceramic, tungsten alloy

    surface finish

    black, plating, PVD, polishing, sandblasting

    tolerance precision

    ±0.02~0.05mm

    quality system

    100% inspection before shipment

    dimensions

    as per customer's requests

    samples qty

    5-10 pcs(for free)

    certification

    ISO 9001, TS 16949, IECQQC080000

    packgae

    plastic bag and carton or as customer's requests

    lead time

    base on the qty of order(usually 40-45 days)


    If you are interested in lock button, please send me 2D or 3D drawings, and then we will evaluate them and offer you a nice price

    High-Quality Metal Components for Special Applications

     From Standard to the Individual Solution


    The Harber Group is an important partner for individual solutions for numerous companies in the medical, electric tool, mechanical and consumer electronics sectors. Driven by stringent demands for quality, durability and safety, many of our standard metal parts from our various technology areas are able to master these challenges. No matter what metal product you are handling.
